CodeBERT

1. Architecture

CodeBERT uses bidirectional transformer and same architecture as RoBERTa-base. Total Number of parameters = 125M. It works as an encoder.

2. Pre-training Data

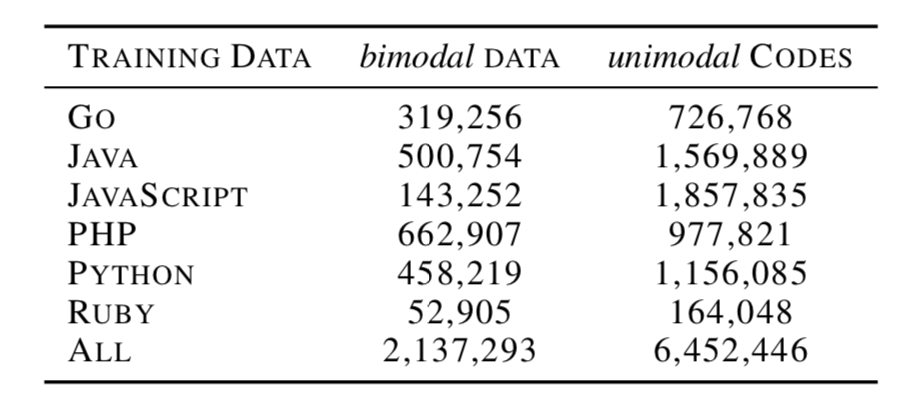

• CodeBERT uses CodeSearchNet Corpus.

CodeBERT makes use of both bimodal NL-PL data and unimodal NL + PL data.
bimodal : code paired with natural language documentation.
unimodal: code without NL or NL paired without code.

2.1 I/O Representation

• Input : \([CLS], w_1, w_2, ..., w_n, [SEP], c_1, c_2, ..., c_m, [EOS] \longleftarrow\) concat NL with PL
• Output : contextualized embedding for each token, for both NL & PL, and embedding of \([CLS]\) token which is used as aggregate representation of sequence for classification or ranking task.

3. Pre-training Objective

CodeBERT uses both Masked Language Modeling (MLM) and Replaced Token Detection (RTD) as pre-training objectives.

3.1 MLM

• Uses only the bimodal data.

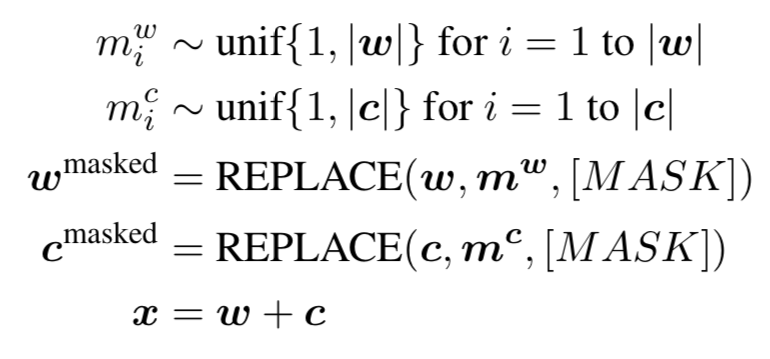

Given a NL-PL pair, \(\boldsymbol{x} = \{\boldsymbol{w}, \boldsymbol{c}\}\), we select random positions to mask-out (\(\boldsymbol{m^w}\) and \(\boldsymbol{m^c}\)) and replace them with \([MASK]\) token. Around 15% of tokens are masked out.

MLM objective predicts the original token which were masked out. NOTE: \(p^{D_1}\) is the discriminator which predicts probability distribution over vocabulary \(V\).

\[ \mathcal{L}_{\text{MLM}}(\theta) = \sum_{i \in \boldsymbol{m^w} \cup \boldsymbol{m^c}} \left[ -\log p^{D_1}(x_i \mid \boldsymbol{w}^{\text{masked}}, \boldsymbol{c}^{\text{masked}}) \right] \]

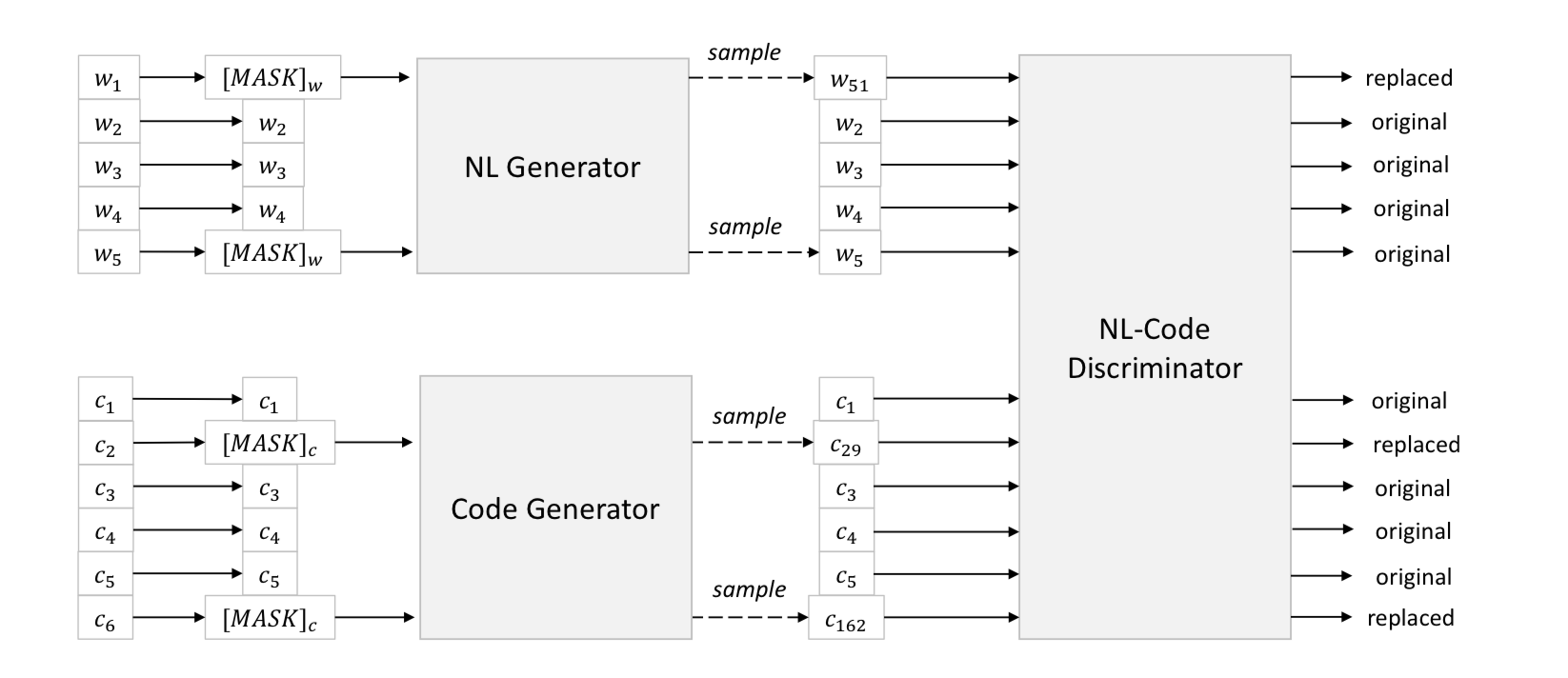

3.2 RTD

• Uses both unimodal and bimodal data.

We use two generators, \(p^{G_w}\) (NL) and \(p^{G_c}\) (PL). These are implemented as n-gram language models with bidirectional context.

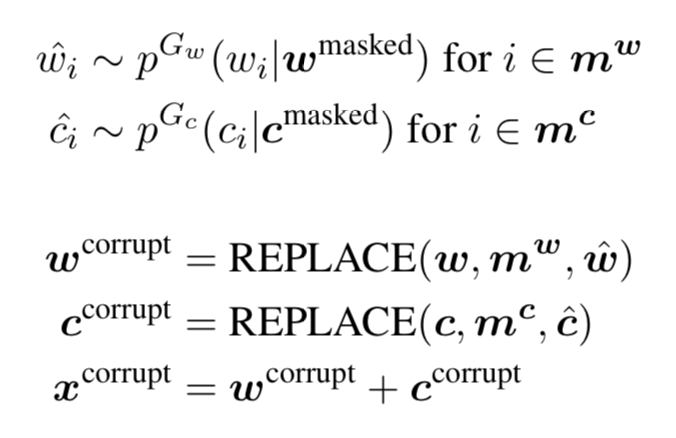

We generate alternative token for masked positions. Discriminator is trained to output probability of the token being "real". This is done for every position in the input.

\[ \mathcal{L}_{\text{RTD}}(\theta) = - \sum_{i = 1}^{|\boldsymbol{w}| + |\boldsymbol{c}|} \delta(i) \cdot \log p^{D_2} \left(\boldsymbol{x}^{\text{corrupt}}, i\right) + \left(1 - \delta(i)\right) \cdot \log \left(1 - p^{D_2} (\boldsymbol{x}^{\text{corrupt}}, i)\right) \]

\[ \text{where} \quad \delta(i) = \begin{cases} 1, & \text{if } x_i^{\text{corrupt}} = x_i. \\ 0, & \text{otherwise.} \end{cases} \]

4. Downstrea Tasks

Authors of original paper have taken 4 downstream NL-PL tasks.

1. Natural Language Code Search
2. Late Fusion for Code Search
3. NL-PL Probing
4. Code Documentation Generation
5. Code Summarization on C# (not in pre-training data)

4.1 NL Code Search

• TASK: Take natural language as input, find most semantically related code.
• METRIC: MRR for each pair of test data over a fixed set of 999 distractor codes.
• EXTRA PARAMS: A binary classification head, where \(softmax\) is connected to \([CLS]\) token's embedding.
• CodeBERT is fine-tuned along with classification head.

4.2 Late Fusion (Code Search)

• CodeBERT first encodes both NL and PL separately.
• Code Search is now equivalent to find nearest neighbor in the "shared" vector space.
• Fine-tune CodeBERT with the following objective:

\[ - \dfrac{1}{N} \sum_i \log \left( \dfrac{ \exp\left( \text{Enc}(c_i)^\top \text{Enc}(w_i) \right) }{ \sum_j \exp\left( \text{Enc}(c_j)^\top \text{Enc}(w_i) \right) } \right) \]

4.3 NL-PL Probing

• TASK: Given NL-PL pair, correctly predict the masked token (code/word token) among distractors. It is formulated as multi-choice QA task.
• METRIC: Accuracy.
• EXTRA PARAMS: Classification head.
• For NL documentation, if it contains \(\{max, min, less, greater\}\), we include the complete code and mask the NL doc.
• For PL codes, if it contains \(\{max, min\}\), we include the complete NL doc and mask the PL code.
• CodeBERT is kept frozen in this case, only classification heads are trained.

4.4 Code Documentation Generation

• TASK: Given code as input, generate documentation for that code
• METRIC: Generated docs are short and high order n-grams may not overlap, so Smoothed-BLEU score is used.
• EXTRA PARAMS: Decoder is trained to generate documentation
• CodeBERT is used as encoder, the \([CLS]\) token embedding is used as as input to the decoder for generating output.

4.5 Code Summarize on C#

• TASK: Same task as Code documentation generation. The difference is CodeBERT was not trained on C#. It's a complete new language to the model.
• METRIC: Smoothed-BLEU-4 score
• EXTRA PARAMS: Decoder is trained to generate documentation
• CodeBERT is used as encoder, the \([CLS]\) token embedding is used as as input to the decoder for generating output.
